Body
Caramelized Mahogany
Body Finish
Satin Polyurethane
Body Material
Caramelized Mahogany
Body Shape
PC1™
Body Top
1/8" Quilt Maple
Sale
Couldn't load pickup availability
As a longtime Jackson endorser (since 1986) and lead guitarist for one of the world's biggest-selling rock bands, Def Leppard's Phil Collen has deftly wrung numerous classic riffs from Jackson guitars. It's impossible to imagine the '80s and '90s rock charts - or Jackson history - without him.
Collen's PC1 Dinky was one of the original Jackson signature instruments, and continues to stand out in modern times with its staple exotic woods and a Jackson Sustainer/Driver. Refreshed in 2017, Collen's revered USA signature models keep up with his latest tastes and specifications.

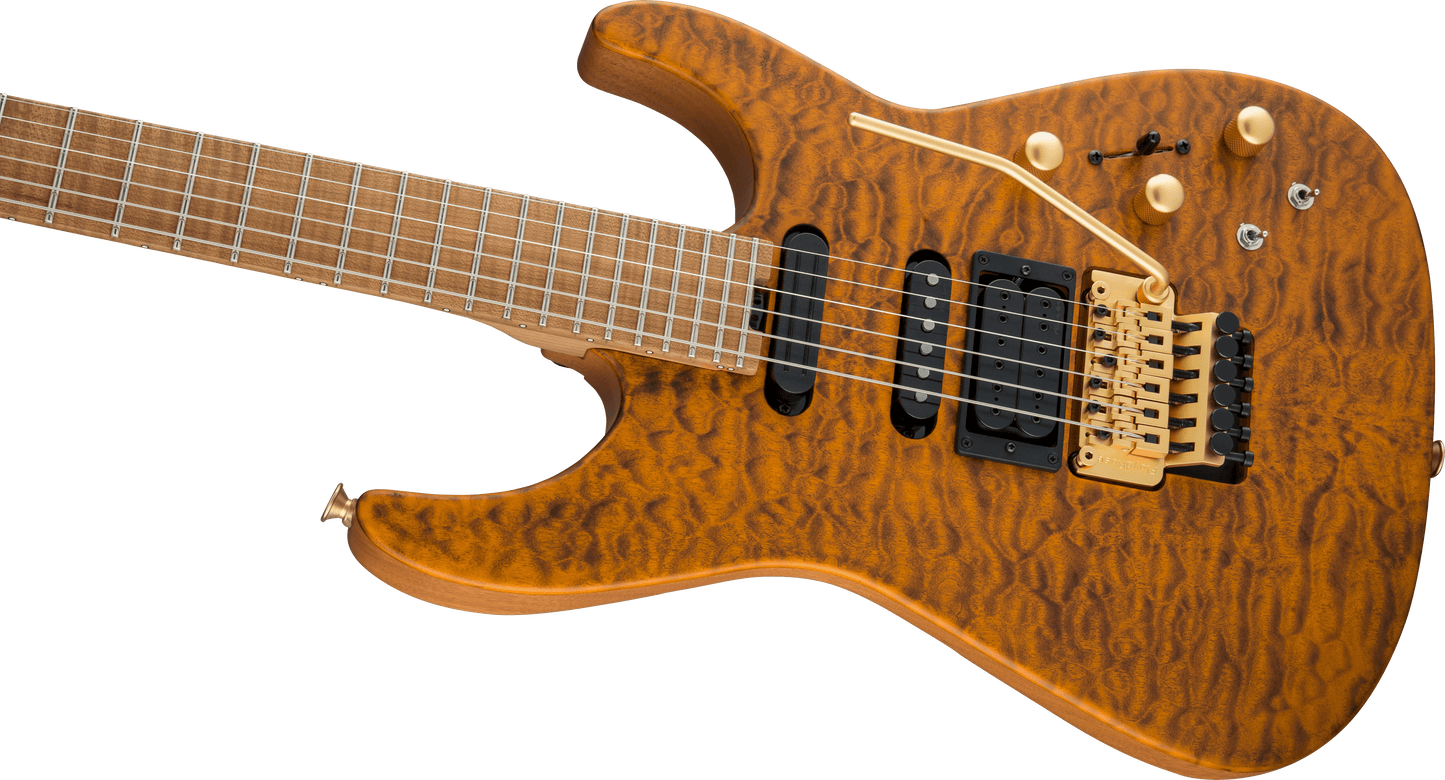

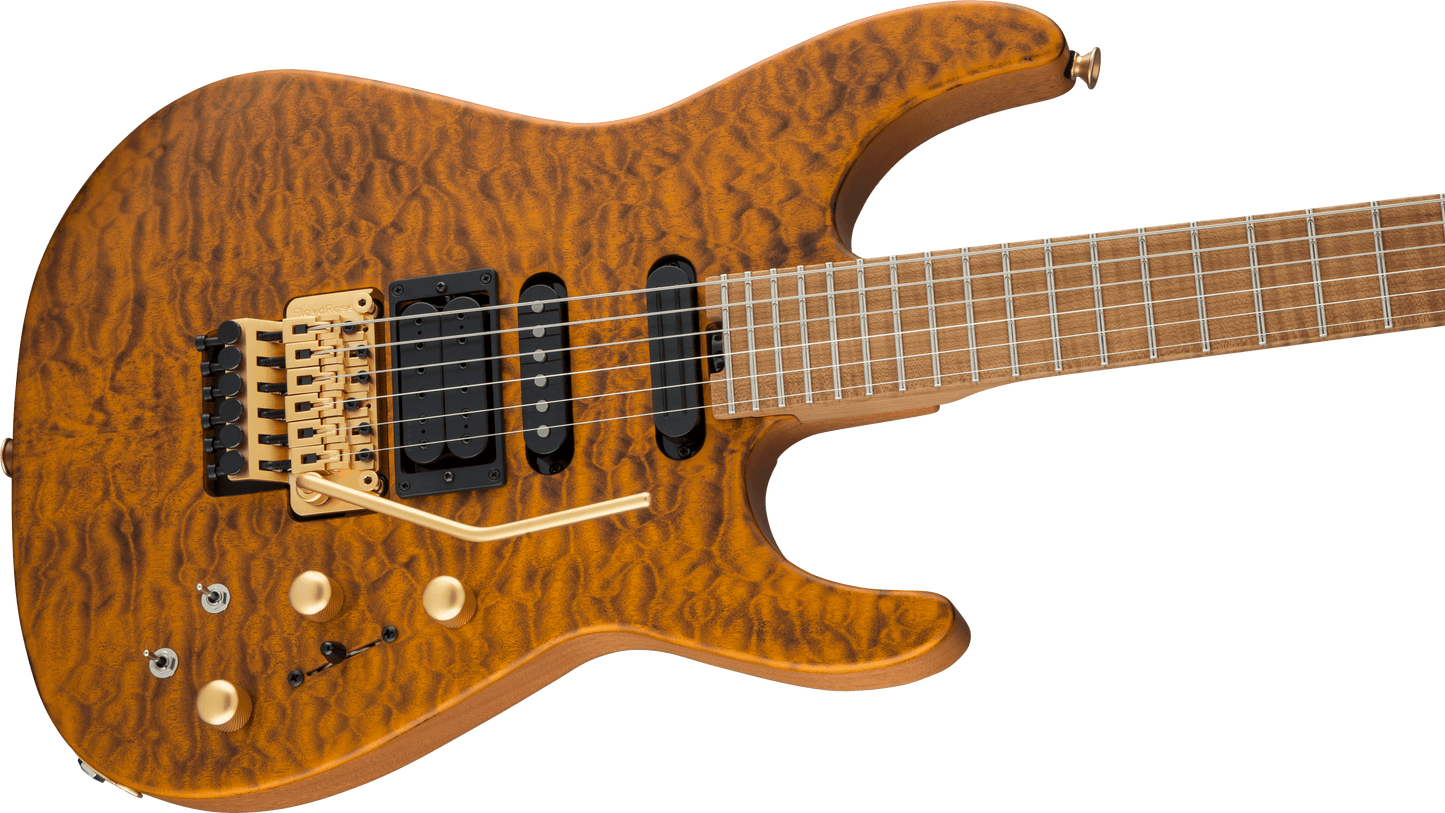

The USA Signature Phil Collen PC1™ Satin Stain model boasts premium features including a caramelized mahogany body with 1/8" quilt maple top, bolt-on two-piece caramelized quartersawn flame maple neck with hand-rubbed urethane gel on the back and graphite reinforcement, 12"-16"compound radius caramelized flame maple fingerboard with 24 jumbo frets, convenient thumbwheel truss rod butt adjust and licensed Fender ® Stratocaster® headstock.

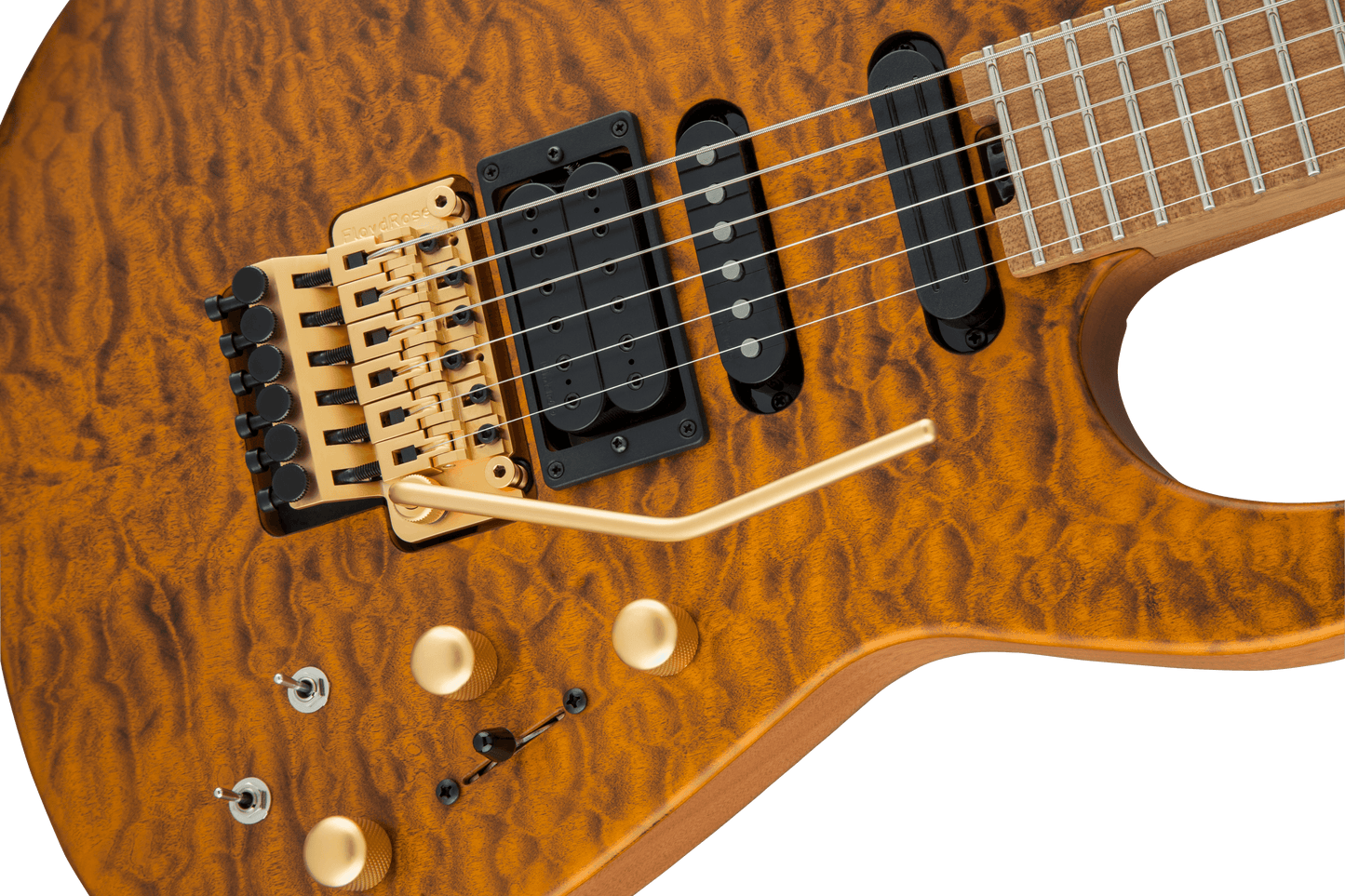

Collen's favored H/S/S configuration is also here, with a DiMarzio® Super 3™ DP-152-F bridge pickup, DiMarzio HS-2™ DP116 middle pickup and a PC1 Sustainer Driver as the neck pickup. Equipped with master volume, master tone and intensity control knobs, as well as a five-way blade switch to tweak and refine tone, a Floyd Rose Original tremolo with die-cast tuners and satin gold hardware.
Available in these satin finishes: Transparent Amber, Transparent Blue, Au Natural, Transparent Black, Transparent Red or Transparent Green.
A caramelized mahogany body is paired with a caramelized flame Maple Neck and a caramelized flame maple Fingerboard for exquisite Style and woody, warm and focused Tone.
A staple in Phil Collen’s signature instruments, the Sustainer/Driver features a sustain neck pickup that offers unending sustain, plus a toggle to turn the system on and off. A switch is also included to choose between sustaining the notes or the harmonics, allowing for a wide variety of tonal options.
Caramelized Mahogany
Satin Polyurethane
Caramelized Mahogany
PC1™
1/8" Quilt Maple
DiMarzio® Super 3™ DP152
Volume, Tone, Intensity Control, Active Sustainer® On/Off Switch, Fundamental/Harmonic/Blend Switch
DiMarzio® HS-2™ DP116
PC1™ Sustainer Driver
HSS
5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup

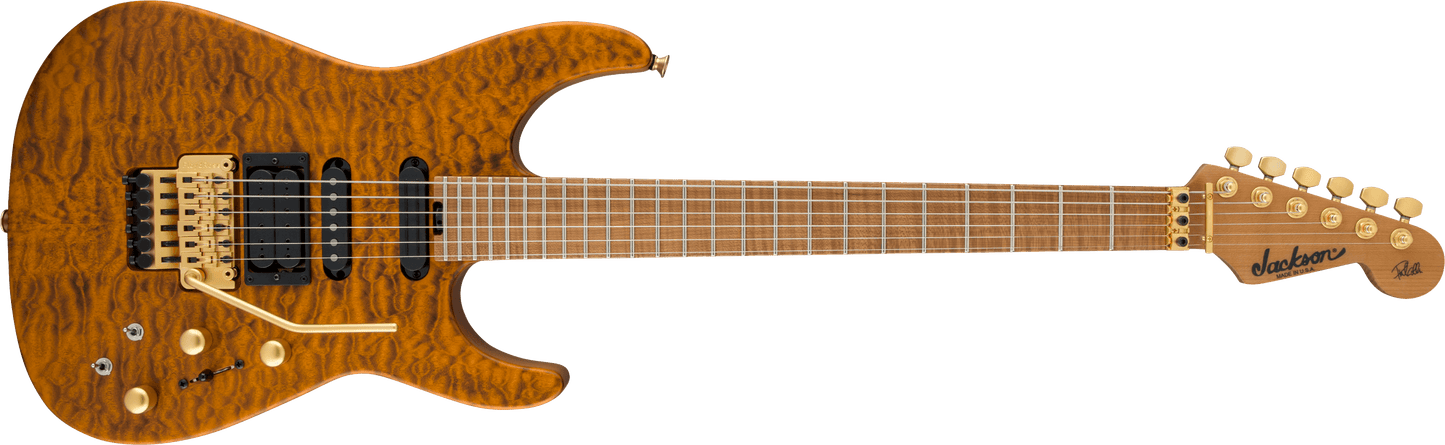

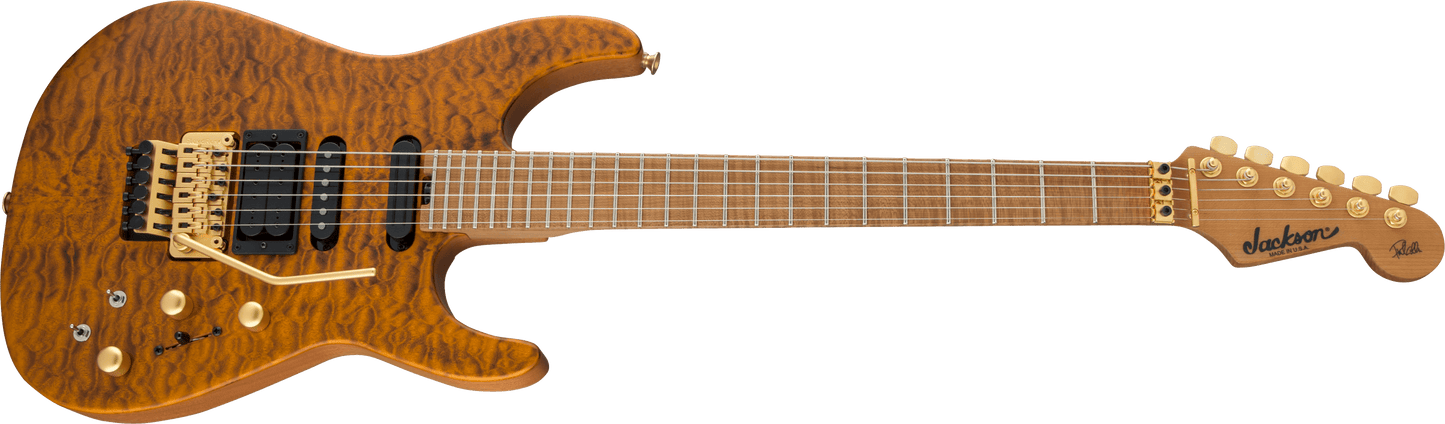

Satin Trans Amber
Right-Hand

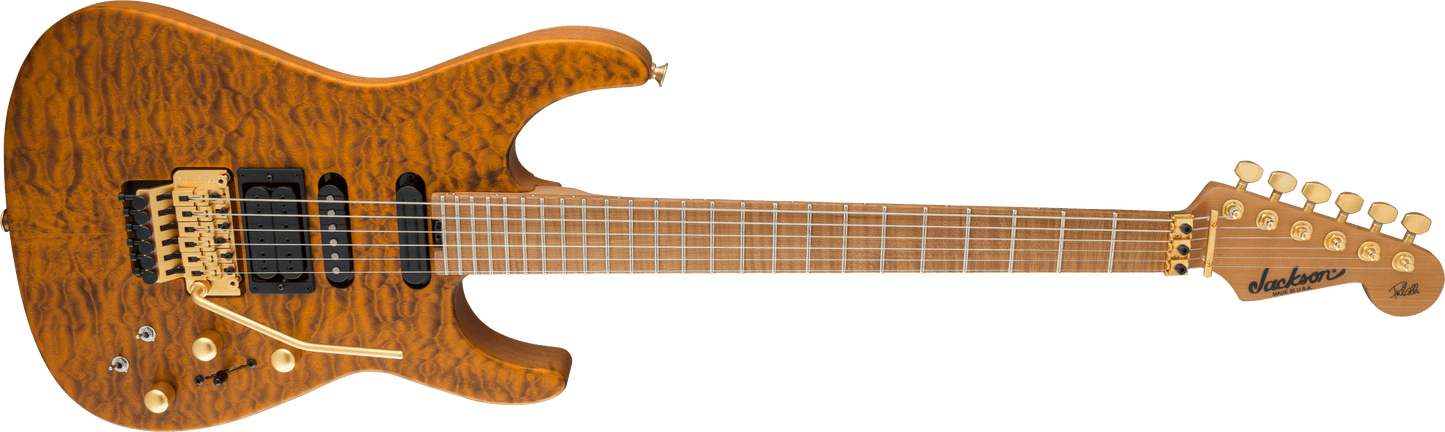

USA Signature Phil Collen PC1™ Satin Stain, Caramelized Flame Maple Fingerboard, Satin Transparent Amber
Artist Signature
Floyd Rose® Original Double-Locking Tremolo
Dome-Style
Satin Gold
Jackson®
None
Nickel Plated Steel (.011-.052 Gauges)
Black
Floyd Rose® Original

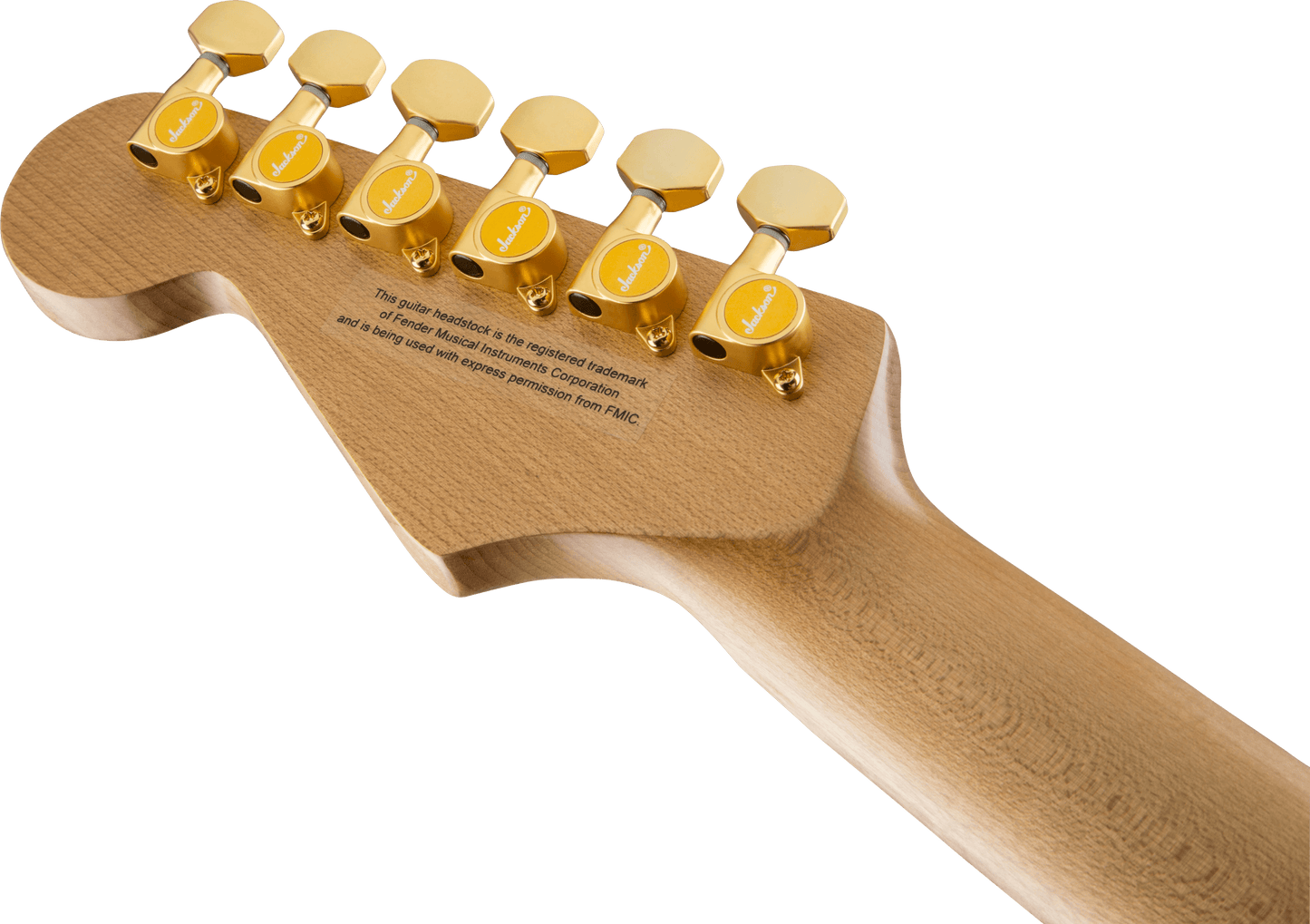

Jackson® Sealed Die-Cast
Jumbo
25.5" (64.77 cm)
9207.90.0040
Caramelized Flame Maple
12"-16" Compound Radius (304.8 mm to 406.4 mm)

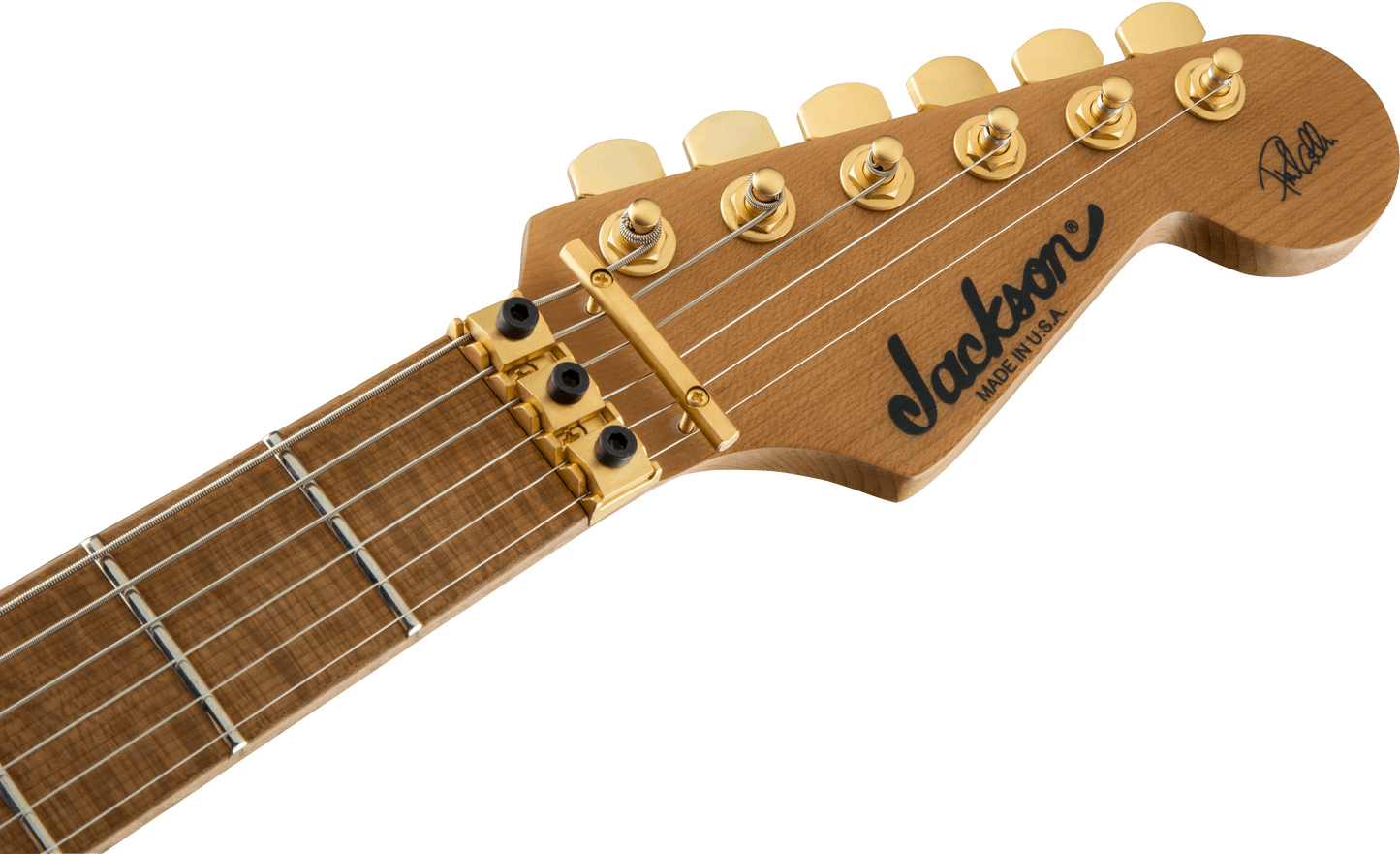

Licensed Fender® Stratocaster®
Bolt-On with Graphite Reinforcement
Hand-Rubbed Urethane
Quartersawn Caramelized Flame Maple
24
Floyd Rose® Original Locking
1.6875" (42.86 mm)
None
Floyd Rose® Original Locking
Dual-Action with Wheel
Heel-Mount Truss Rod Adjustment Wheel
Caramelized Mahogany
Satin Polyurethane
Caramelized Mahogany
PC1™
1/8" Quilt Maple
DiMarzio® Super 3™ DP152
Volume, Tone, Intensity Control, Active Sustainer® On/Off Switch, Fundamental/Harmonic/Blend Switch
DiMarzio® HS-2™ DP116
PC1™ Sustainer Driver
HSS
5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup
Satin Trans Blue
Right-Hand

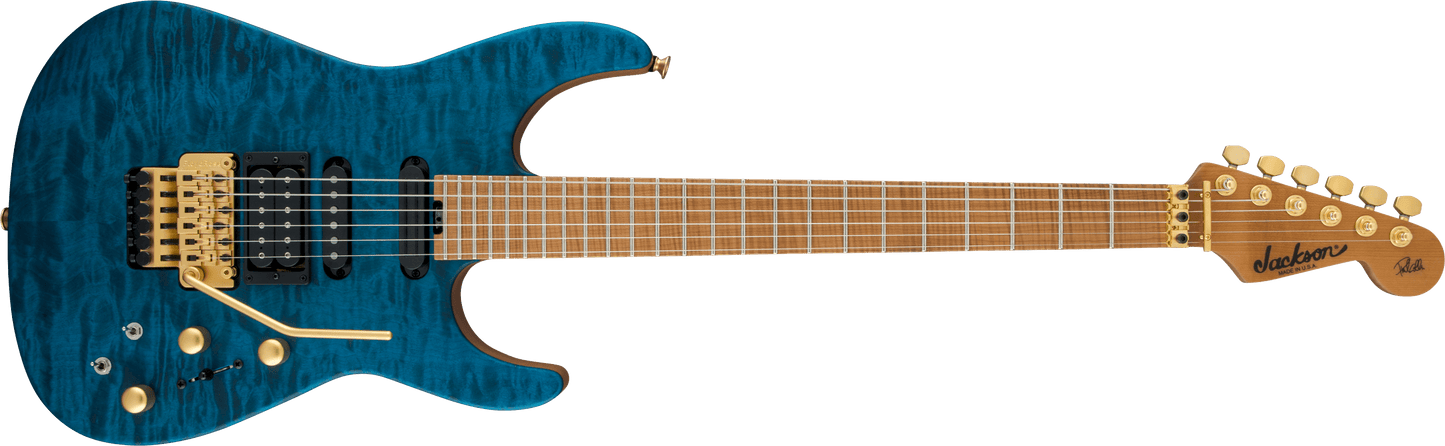

USA Signature Phil Collen PC1™ Satin Stain, Caramelized Flame Maple Fingerboard, Satin Transparent Blue
Artist Signature
Floyd Rose® Original Double-Locking Tremolo
Dome-Style
Satin Gold
Jackson®
None
Nickel Plated Steel (.011-.052 Gauges)
Black
Floyd Rose® Original
Jackson® Sealed Die-Cast
Jumbo
25.5" (64.77 cm)
9207.90.0040
Caramelized Flame Maple
12"-16" Compound Radius (304.8 mm to 406.4 mm)
Licensed Fender® Stratocaster®
Bolt-On with Graphite Reinforcement
Hand-Rubbed Urethane
Quartersawn Caramelized Flame Maple
24
Floyd Rose® Original Locking
1.6875" (42.86 mm)
None
Floyd Rose® Original Locking
Dual-Action with Wheel
Heel-Mount Truss Rod Adjustment Wheel
Caramelized Mahogany
Satin Polyurethane
Caramelized Mahogany
PC1™
1/8" Quilt Maple
DiMarzio® Super 3™ DP152
Volume, Tone, Intensity Control, Active Sustainer® On/Off Switch, Fundamental/Harmonic/Blend Switch
DiMarzio® HS-2™ DP116
PC1™ Sustainer Driver
HSS
5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup

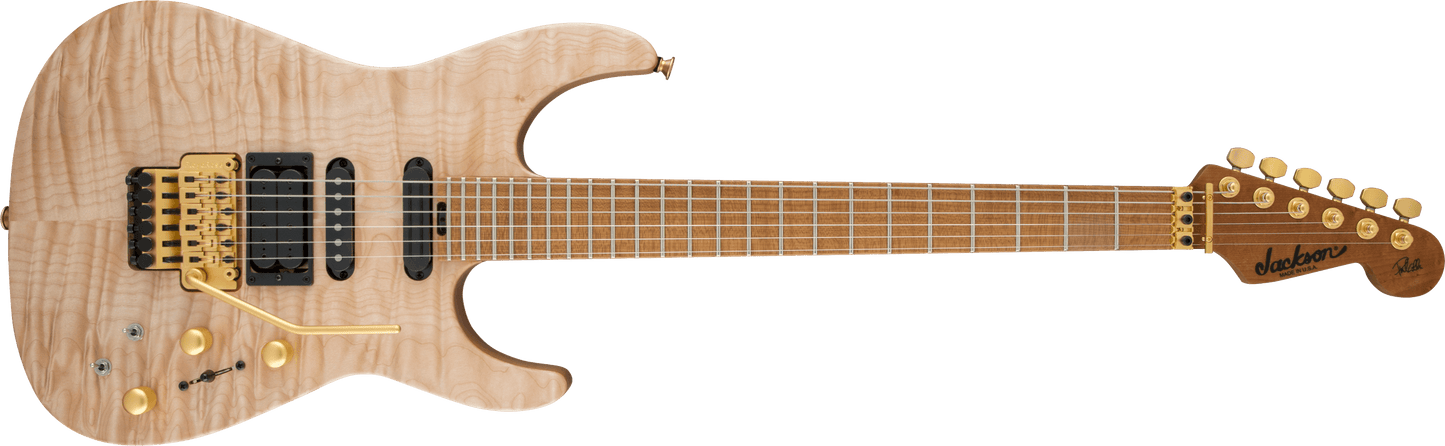

Au Natural
Right-Hand
USA Signature Phil Collen PC1™ Satin Stain, Caramelized Flame Maple Fingerboard, Satin Au Natural
Artist Signature
Floyd Rose® Original Double-Locking Tremolo
Dome-Style
Satin Gold
Jackson®
None
Nickel Plated Steel (.011-.052 Gauges)
Black
Floyd Rose® Original
Jackson® Sealed Die-Cast
Jumbo
25.5" (64.77 cm)
9207.90.0040
Caramelized Flame Maple
12"-16" Compound Radius (304.8 mm to 406.4 mm)
Licensed Fender® Stratocaster®
Bolt-On with Graphite Reinforcement
Hand-Rubbed Urethane
Quartersawn Caramelized Flame Maple
24
Floyd Rose® Original Locking
1.6875" (42.86 mm)
None
Floyd Rose® Original Locking
Dual-Action with Wheel
Heel-Mount Truss Rod Adjustment Wheel
Caramelized Mahogany
Satin Polyurethane
Caramelized Mahogany
PC1™
1/8" Quilt Maple
DiMarzio® Super 3™ DP152
Volume, Tone, Intensity Control, Active Sustainer® On/Off Switch, Fundamental/Harmonic/Blend Switch
DiMarzio® HS-2™ DP116
PC1™ Sustainer Driver
HSS
5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup

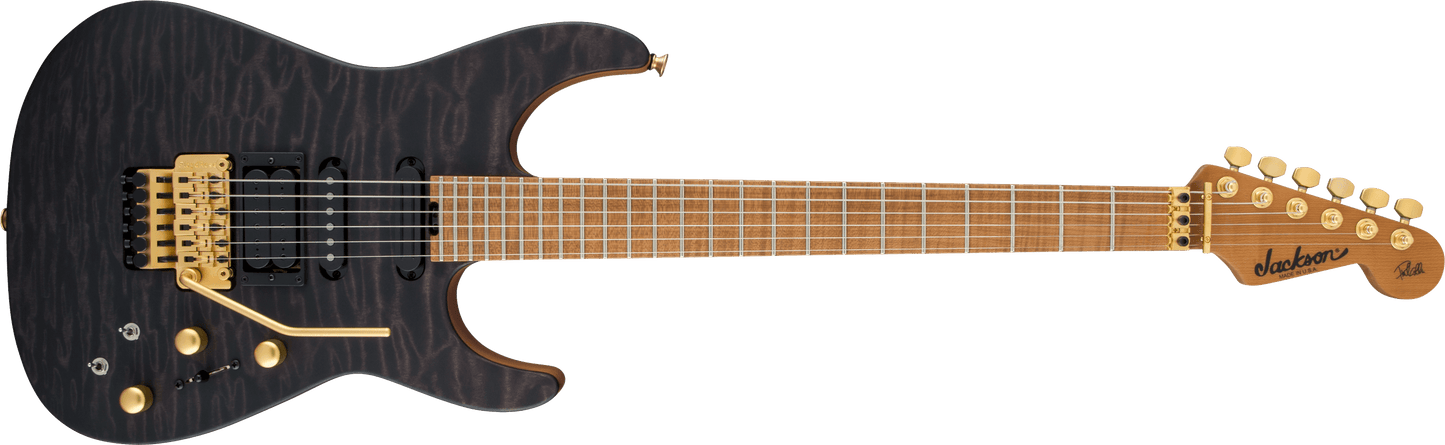

Satin Trans Black
Right-Hand
USA Signature Phil Collen PC1™ Satin Stain, Caramelized Flame Maple Fingerboard, Satin Transparent Black
Artist Signature
Floyd Rose® Original Double-Locking Tremolo
Dome-Style
Satin Gold
Jackson®
None
Nickel Plated Steel (.011-.052 Gauges)
Black
Floyd Rose® Original
Jackson® Sealed Die-Cast
Jumbo
25.5" (64.77 cm)
9207.90.0040
Caramelized Flame Maple
12"-16" Compound Radius (304.8 mm to 406.4 mm)
Licensed Fender® Stratocaster®
Bolt-On with Graphite Reinforcement
Hand-Rubbed Urethane
Quartersawn Caramelized Flame Maple
24
Floyd Rose® Original Locking
1.6875" (42.86 mm)
None
Floyd Rose® Original Locking
Dual-Action with Wheel
Heel-Mount Truss Rod Adjustment Wheel
Caramelized Mahogany
Satin Polyurethane
Caramelized Mahogany
PC1™
1/8" Quilt Maple
DiMarzio® Super 3™ DP152
Volume, Tone, Intensity Control, Active Sustainer® On/Off Switch, Fundamental/Harmonic/Blend Switch
DiMarzio® HS-2™ DP116
PC1™ Sustainer Driver
HSS
5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup

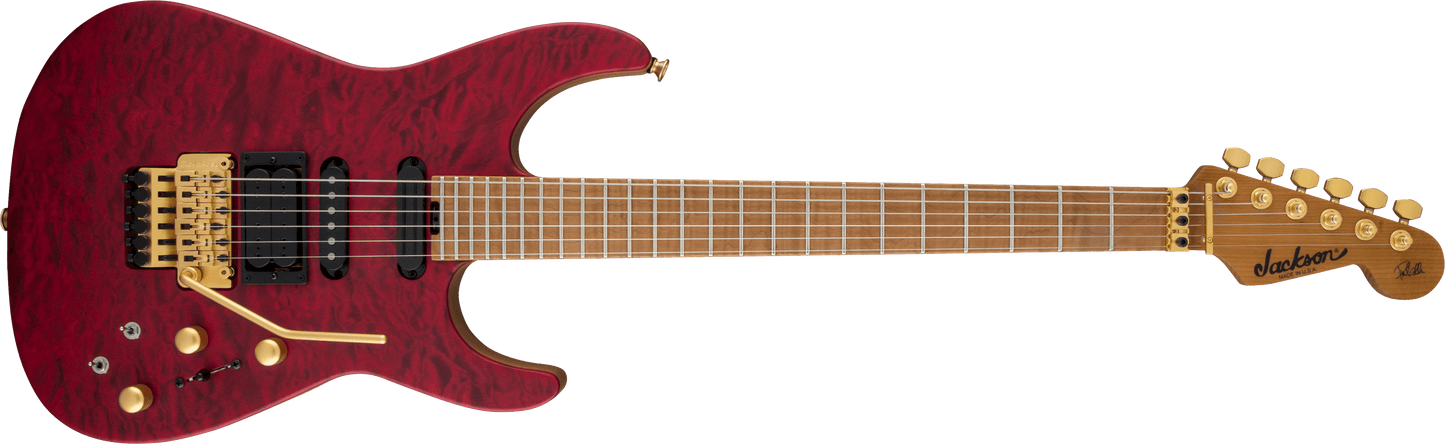

Satin Trans Red
Right-Hand
USA Signature Phil Collen PC1™ Satin Stain, Caramelized Flame Maple Fingerboard, Satin Transparent Red
Artist Signature
Floyd Rose® Original Double-Locking Tremolo
Dome-Style
Satin Gold
Jackson®
None
Nickel Plated Steel (.011-.052 Gauges)
Black
Floyd Rose® Original
Jackson® Sealed Die-Cast
Jumbo
25.5" (64.77 cm)
9207.90.0040
Caramelized Flame Maple
12"-16" Compound Radius (304.8 mm to 406.4 mm)
Licensed Fender® Stratocaster®
Bolt-On with Graphite Reinforcement
Hand-Rubbed Urethane
Quartersawn Caramelized Flame Maple
24
Floyd Rose® Original Locking
1.6875" (42.86 mm)
None
Floyd Rose® Original Locking
Dual-Action with Wheel
Heel-Mount Truss Rod Adjustment Wheel
Caramelized Mahogany
Satin Polyurethane
Caramelized Mahogany
PC1™
1/8" Quilt Maple
DiMarzio® Super 3™ DP152
Volume, Tone, Intensity Control, Active Sustainer® On/Off Switch, Fundamental/Harmonic/Blend Switch
DiMarzio® HS-2™ DP116
PC1™ Sustainer Driver
HSS
5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup

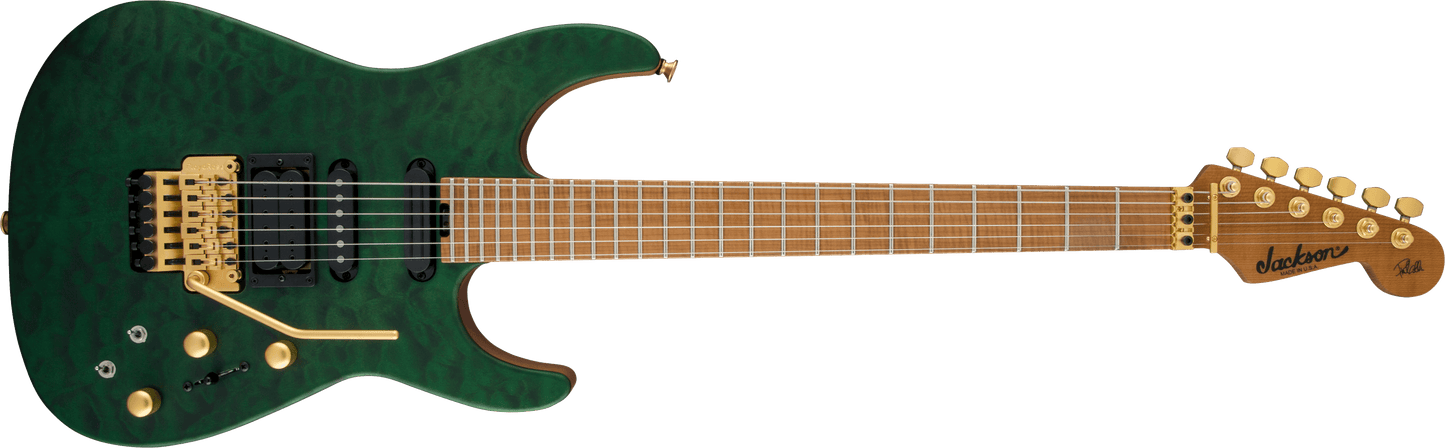

Satin Trans Green
Right-Hand
USA Signature Phil Collen PC1™ Satin Stain, Caramelized Flame Maple Fingerboard, Satin Transparent Green
Artist Signature
Floyd Rose® Original Double-Locking Tremolo
Dome-Style
Satin Gold
Jackson®
None
Nickel Plated Steel (.011-.052 Gauges)
Black
Floyd Rose® Original
Jackson® Sealed Die-Cast
Jumbo
25.5" (64.77 cm)
9207.90.0040
Caramelized Flame Maple
12"-16" Compound Radius (304.8 mm to 406.4 mm)
Licensed Fender® Stratocaster®
Bolt-On with Graphite Reinforcement
Hand-Rubbed Urethane
Quartersawn Caramelized Flame Maple
24
Floyd Rose® Original Locking
1.6875" (42.86 mm)
None
Floyd Rose® Original Locking
Dual-Action with Wheel
Heel-Mount Truss Rod Adjustment Wheel
